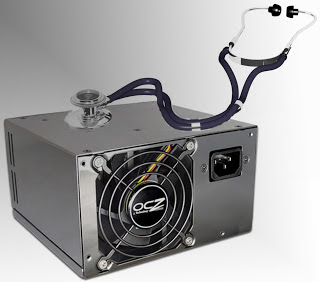

How to Check PC Power Supply Conditions By Way Jumper | Power Supply is a hardware component on the computer that serves as a means for supplying electrical power to all the components contained in the computer. Of course, without Power Supply computer will not turn on. If you buy a new Power Supply, then you need to check the condition of the Power Supply, whether working or not. Or if you find a PC that does not turn at all, and when trying to open the case examined, and look at the power supply fan is not spinning at all, then first you have to check is the condition of the power supply. Because it could be the cause of the computer does not turn on at all is due to the malfunction of the power supply.

Tutorial How to Check PC Power Supply Conditions By Way Jumper

One way PC Power Supply Check the condition of which I will share this time is Jumper. How this jumper means the direct connect cable sections plus (+) with a cable min (-) on connector using any media that can conduct electricity. There are many connectors on the power supply, namely power supply connectors and multiple connectors that are connected to the CD-ROM and hard drive to supply electrical power to the device, and others. And How jumper to check the condition of the power supply is done in the power supply connector. The power supply connector is a connector that is connected to the motherboard, its function is certainly to supply electrical power to the motherboard.

Power supply There are several types. In the kind of ATX power supply, power supply connector has 24 pins are divided into 2 parts. One has 20 pins, and the other one has 4 pins. As for Condition Checks Power Supply ATX PC With Jumper How is done in the power supply connector has 20 pins.

How to Check Condition PC Power Supply Jumper With the way I will describe below, Power supply not being in a state connected to the electrical power and any device.

How to Check PC Power Supply Conditions By Way Jumper :
  • Prepare a cable wire or copper from the former or any media that can conduct electricity, the size of which is sufficiently thick and long.
  • Consider the image below. Input or connect one end of the copper at the pin with a green cord, or pin number 14.
Input or connect one end of the copper at the pin with a green cord, or pin number 14.
  • Then connect one end of an input or other copper on one pin, black cables, or pin numbers 3, 5, 7, 13, 15, 16 or 17. Thus examples of the results will be as follows.
connect one end of an input or other copper on one pin, black cables, or pin numbers 3, 5, 7, 13, 15, 16 or 17
  •  Finally, connect the power supply to a power source with a connector that has been provided.
If the fan on the power supply spin, then the power supply is still functioning, but not guaranteed still in good condition 100%. However, if the fan on the power supply does not rotate at all, it can be ascertained that the power supply is already unusable. Might still be improved, but if after a Check Condition With PC Power Supply Jumper How conditions have like this, the power supply should be replaced with new ones.

May be useful..!
